Description

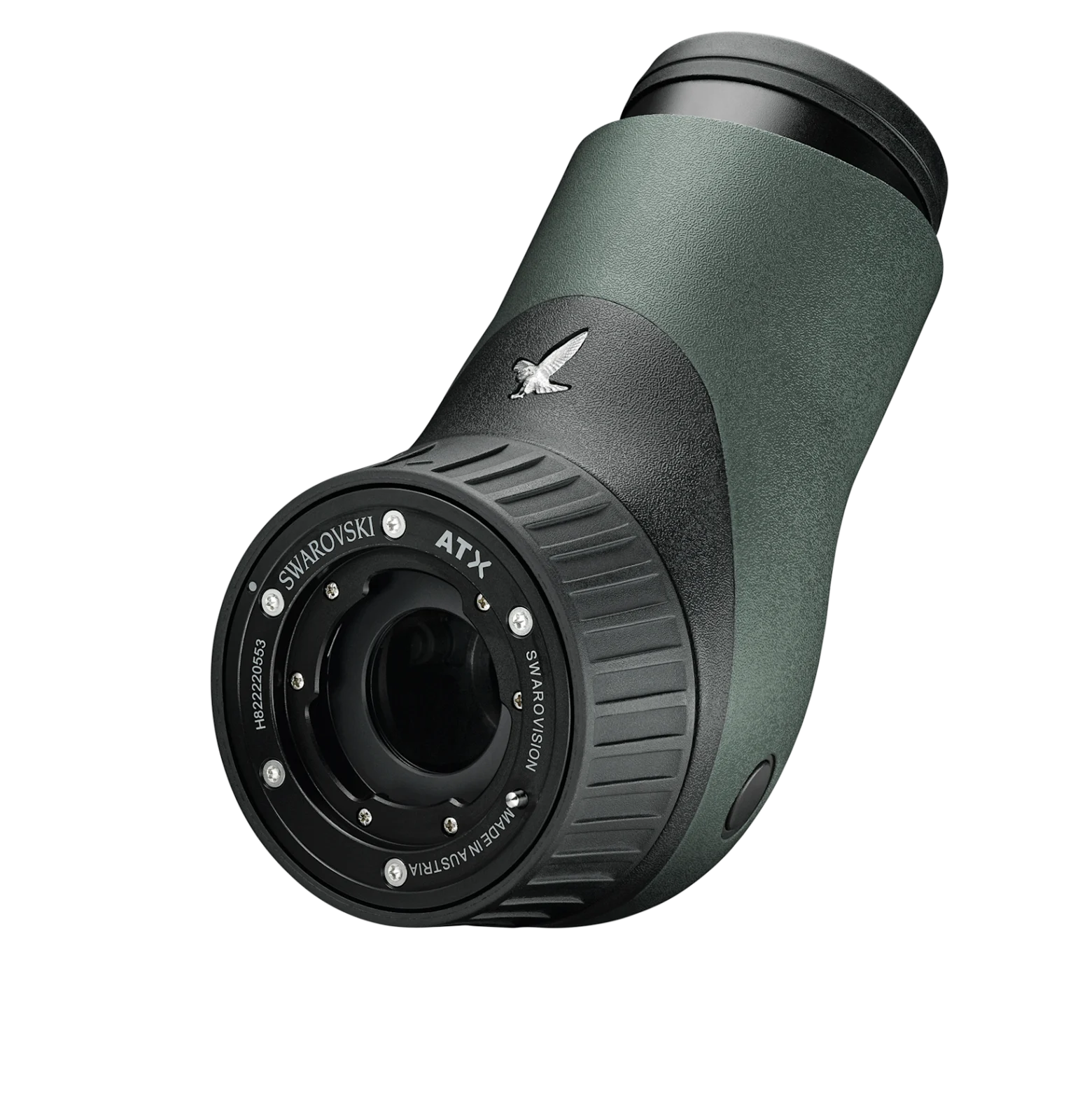

Swarovski ATX Spotting Scope: Swarovski Optik ATX angled eyepiece module for the modular ATX/STX/BTX spotting scope system. Pairs with 65-115 mm objectives. 28.6 oz.
The ATX/STX/BTX system is modular: you choose an eyepiece module (ATX angled, STX straight or BTX binocular) and an objective module (65, 85, 95 or 115 mm), and they lock together with a bayonet. You can change either part later, for example adding a 65 mm objective for backpack hunts and a 95 mm for long sessions from the truck. The ATX is the angled eyepiece, the most popular choice for hunters because it is comfortable for long sessions and easy to share.
Swarovski ATX Spotting Scope specs
| Module | ATX eyepiece (angled view) |
|---|---|
| Compatible objectives | Swarovski ATX/STX/BTX 65, 85, 95 and 115 mm |
| Magnification (with objective) | 25–60x with 65 or 85 mm; 30–70x with 95 or 115 mm |
| Eye relief | 20 mm |
| Length | 5.6 in |
| Weight | 28.6 oz |
| Submersion tightness | 13 ft (4 m) |
| Operating temperature | −13 to +131 °F |
| Warranty | SWAROVSKI OPTIK manufacturer’s warranty |
| Price | $2,999.00 (eyepiece only) |
Who is the ATX eyepiece for?
Serious hunters and guides who glass for long sessions and want a system they can adapt: a light 65 mm objective for sheep and goat hunts, and a large 95 or 115 mm for glassing from a vehicle or base camp.
Do I need to buy an objective module separately?
Yes. This listing is the ATX eyepiece only. Add a Swarovski objective module to complete the scope.
ATX angled or STX straight?
Angled (ATX) suits long tripod sessions and glassing uphill; straight (STX) is quicker for picking up moving animals and for downhill glassing.
What’s in the box with the Swarovski ATX Spotting Scope?
- ATX angled eyepiece module
- Eyepiece cap
Gear to pair with the Swarovski ATX Spotting Scope
- All spotting scopes
- Swarovski STX straight eyepiece
- Swarovski BTX binocular eyepiece
- Swarovski objective module
Swarovski ATX Spotting Scope FAQ
Is the ATX waterproof?
Yes, Swarovski rates the eyepiece modules submersible to 13 ft (4 m).
What magnification does the ATX give?
25–60x with the 65 or 85 mm objective and 30–70x with the 95 or 115 mm objective.
How much does the ATX eyepiece weigh?
28.6 oz.
Manuals, firmware updates and warranty registration are on the Swarovski Optik official website.
